Model No.

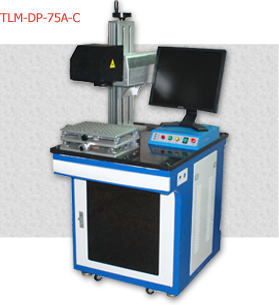

TLW - DP - 75A - C

Max laser power

75W

Power consumption

< 1.8 KW

Carving depth

< 1.5 mm

Minimum line-width

0.01 mm

Laser wavelength

1064 nm

Repeatable frequency

< 50 KHz

Standard carving range

100 x 100 mm

Selected carving range

70 x 70 mm / 160 x 160 mm

Carving linear speed

< 7000 mm/s

Smallest character

0.25 mm

Repeatable accuracy

0.003 mm

Power demand

Single-phase 220V ±10% / 50Hz / 10A

External measurement

Laser system 750 x 650 x 1500 mm

(L x W x H)

Cooling system: 450 x 650 x 750 mm
Control system: 600 x 600 x 1200 mm
